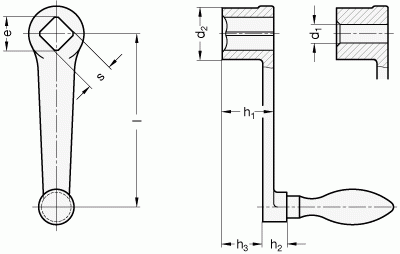

Korby żeliwne DIN 469
Materiał
Żeliwo sferoidalne, pokryte wartswą żywicy epoksydowej, kolor czarny wykończony na mat.
Montaż
- Wykonanie B: piasta z otworem przelotowym H7.
- Wykonanie V: piasta z otworem kwadratowym zgodnie z DIN 79.
Rękojeść
- Typ D: stalowa, toczona i cynkowana rękojeść obrotowa DIN 98.
- Typ F: stalowa, toczona i polerowana rękojeść nieobrotowa DIN 39.
| Produkt | l | sH11 | E min. | d%1%H7 | d%2% | h%1% | h2 |
 | 250 | V 24 | 32.2 | - | 48 | 48 | 21 |
 | 250 | V 22 | 28.2 | - | 48 | 48 | 21 |
 | 250 | - | 28.2 | B 17 | 48 | 48 | 21 |
 | 200 | V 22 | 28.2 | - | 44 | 44 | 21 |
 | 200 | V 19 | 25.2 | - | 44 | 44 | 21 |
 | 200 | - | 25.2 | B 17 | 44 | 44 | 21 |
 | 160 | V 19 | 25.2 | - | 38 | 38 | 14 |
 | 160 | V 17 | 22.2 | - | 38 | 38 | 14 |
 | 160 | - | 22.2 | B 14 | 38 | 38 | 14 |
 | 125 | V 17 | 22.2 | - | 34 | 34 | 14 |
 | 125 | V 14 | 18.1 | - | 34 | 34 | 14 |
 | 125 | - | 18.1 | B 10 | 34 | 34 | 14 |
 | 100 | V 14 | 18.1 | - | 28 | 28 | 13 |
 | 100 | V 12 | 16.1 | - | 28 | 28 | 13 |
 | 100 | - | 16.1 | B 10 | 28 | 28 | 13 |
 | 80 | V 12 | 16.1 | - | 24 | 24 | 13 |
 | 80 | V 10 | 13.1 | - | 24 | 24 | 13 |
 | 80 | - | 13.1 | B 8 | 24 | 24 | 13 |
 | 63 | V 10 | 13.1 | - | 20 | 20 | 11 |
 | 250 | V 24 | 32.2 | - | 48 | 48 | 21 |
 | 250 | V 22 | 28.2 | - | 48 | 48 | 21 |
 | 250 | - | 28.2 | B 17 | 48 | 48 | 21 |
 | 200 | V 22 | 28.2 | - | 44 | 44 | 21 |
 | 200 | V 19 | 25.2 | - | 44 | 44 | 21 |
 | 200 | - | 25.2 | B 17 | 44 | 44 | 21 |
 | 160 | V 19 | 25.2 | - | 38 | 38 | 14 |
 | 160 | V 17 | 22.2 | - | 38 | 38 | 14 |
 | 160 | - | 22.2 | B 14 | 38 | 38 | 14 |
 | 125 | V 17 | 22.2 | - | 34 | 34 | 14 |
 | 125 | V 14 | 18.1 | - | 34 | 34 | 14 |
 | 125 | - | 18.1 | B 10 | 34 | 34 | 14 |
 | 100 | V 14 | 18.1 | - | 28 | 28 | 13 |
 | 100 | V 12 | 16.1 | - | 28 | 28 | 13 |
 | 100 | - | 16.1 | B 10 | 28 | 28 | 13 |
 | 80 | V 12 | 16.1 | - | 24 | 24 | 13 |
 | 80 | V 10 | 13.1 | - | 24 | 24 | 13 |
 | 80 | - | 13.1 | B 8 | 24 | 24 | 13 |
 | 63 | V 10 | 13.1 | - | 20 | 20 | 11 |
