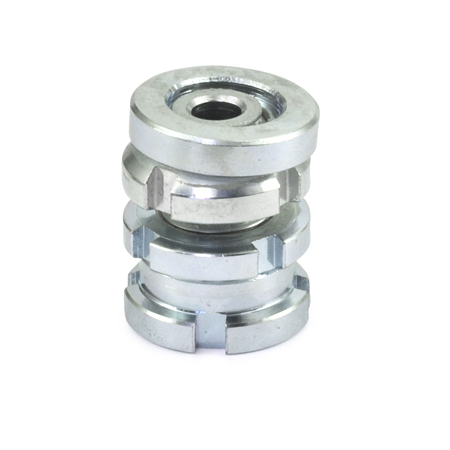

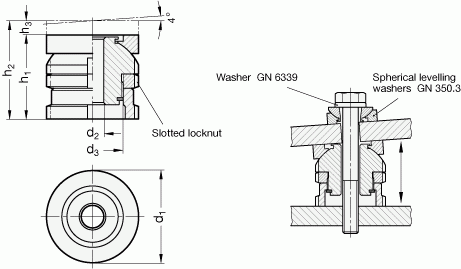

Moduły pozycjonujące GN 350.5
| Produkt | d1 [mm] | d2 [mm] | h%1% | d3 [mm] | h2 [mm] | h3 | dla śruby F%1% | Obciążenie statyczne F%2% | Klucz hakowy DIN 1810 |
 | 25 | 5.5 | 27 | M15x1 | 31 | 4 | M5 | 40 | 33.4 |
 | 25 | 5.5 | 40 | M15x1 | 50 | 10 | M5 | 40 | 33.4 |
 | 25 | 6.6 | 27 | M15x1 | 31 | 4 | M6 | 40 | 30.7 |
 | 25 | 6.6 | 40 | M15x1 | 50 | 10 | M6 | 40 | 30.7 |
 | 32 | 6.6 | 32 | M20x1 | 37 | 5 | M6 | 65 | 55.7 |
 | 32 | 6.6 | 49 | M20x1 | 63 | 14 | M6 | 65 | 55.7 |
 | 32 | 9 | 32 | M20x1 | 37 | 5 | M8 | 65 | 48 |
 | 32 | 9 | 49 | M20x1 | 63 | 14 | M8 | 65 | 48 |
 | 32 | 11 | 32 | M20x1 | 37 | 5 | M10 | 65 | 37.9 |
 | 32 | 11 | 49 | M20x1 | 63 | 14 | M10 | 65 | 37.9 |
 | 45 | 11 | 41 | M30x1.5 | 48 | 7 | M10 | 120 | 92.9 |
 | 45 | 11 | 61 | M30x1.5 | 79 | 18 | M10 | 120 | 92.9 |
 | 45 | 13.5 | 41 | M30x1.5 | 48 | 7 | M12 | 120 | 80.4 |
 | 45 | 13.5 | 61 | M30x1.5 | 79 | 18 | M12 | 120 | 80.4 |
 | 45 | 17.5 | 41 | M30x1.5 | 48 | 7 | M16 | 120 | 45.5 |
 | 45 | 17.5 | 61 | M30x1.5 | 79 | 18 | M16 | 120 | 45.5 |
 | 58 | 17.5 | 53 | M40x1.5 | 62 | 9 | M16 | 210 | 136 |
 | 58 | 17.5 | 79 | M40x1.5 | 102 | 9 | M16 | 210 | 136 |
 | 58 | 22 | 53 | M40x1.5 | 62 | 9 | M20 | 210 | 90 |
 | 58 | 22 | 79 | M40x1.5 | 102 | 23 | M20 | 210 | 90 |
 | 58 | 26 | 53 | M40x1.5 | 62 | 9 | M24 | 210 | 37 |
 | 28 | 26 | 79 | M40x1.5 | 102 | 23 | M24 | 210 | 37 |
 | 70 | 22 | 61 | M50x1.5 | 71 | 10 | M20 | 330 | 210 |
 | 70 | 22 | 94 | M50x1.5 | 123 | 29 | M20 | 330 | 210 |
 | 70 | 26 | 61 | M50x1.5 | 71 | 10 | M24 | 330 | 157 |
 | 70 | 26 | 94 | M50x1.5 | 123 | 29 | M24 | 330 | 157 |
 | 70 | 33 | 61 | M50x1.5 | 71 | 10 | M30 | 330 | 53 |
 | 70 | 33 | 94 | M50x1.5 | 123 | 29 | M30 | 330 | 53 |
 | 80 | 26 | 105 | M60x2 | 79 | 12 | M24 | 495 | 322 |
 | 80 | 26 | 105 | M60x2 | 144 | 39 | M24 | 495 | 322 |
 | 80 | 33 | 67 | M60x2 | 79 | 12 | M30 | 495 | 218 |
 | 80 | 33 | 105 | M60x2 | 144 | 39 | M30 | 495 | 218 |
 | 80 | 39 | 67 | M60x2 | 79 | 12 | M36 | 495 | 101 |
 | 80 | 39 | 105 | M60x2 | 144 | 39 | M36 | 495 | 101 |
