Moduły pozycjonujące GN 350.1

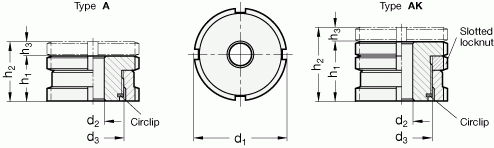

![Moduły pozycjonujące GN 350.1 - rysunek techniczny](https://www.ebmia.pl/c/6603_technical_drawing-tech_draw/moduly-pozycjonujace-gn-3501-moduly-pozycjonujace.jpg)
Produkt | d%1% | d%2% | d%3% | h%1% | h2 | h3 | r | Oznaczenie dla klucza hakowego |
EG-GN350.1-0003 | 32 | 9 | M 20 x 1 | 18 | 23 | 5 | M 8 | |
EG-GN350.1-0004 | 32 | 11 | M 20 x 1 | 18 | 23 | 5 | M 10 | |
EG-GN350.1-0005 | 45 | 11 | M 30 x 1.5 | 22 | 29 | 7 | M 10 | |
EG-GN350.1-0006 | 45 | 13.5 | M 30 x 1.5 | 22 | 29 | 7 | M 12 | DIN 1810-A45-50 |
EG-GN350.1-0007 | 45 | 17.5 | M 30 x 1.5 | 22 | 29 | 7 | M 16 | DIN 1810-A45-50 |
EG-GN350.1-0008 | 58 | 17.5 | M 40 x 1.5 | 28 | 37 | 9 | M 16 | DIN 1810-A58-62 |
EG-GN350.1-0009 | 58 | 22 | M 40 x 1.5 | 28 | 37 | 9 | M 20 | |
EG-GN350.1-0010 | 58 | 26 | M 40 x 1.5 | 28 | 37 | 9 | M 24 | |
EG-GN350.1-0011 | 70 | 22 | M 50 x 1.5 | 33 | 43 | 10 | M 20 | |
EG-GN350.1-0012 | 70 | 26 | M 50 x 1.5 | 33 | 43 | 10 | M 24 | |
EG-GN350.1-0013 | 70 | 33 | M 50 x 1.5 | 33 | 43 | 10 | M 30 | |
EG-GN350.1-0014 | 80 | 26 | M 60 x 2 | 38 | 50 | 12 | M 24 | |
EG-GN350.1-0015 | 80 | 33 | M 60 x 2 | 38 | 50 | 12 | M 30 | |
EG-GN350.1-0016 | 80 | 39 | M 60 x 2 | 38 | 50 | 12 | M 36 | |
EG-GN350.1-0018 | 25 | 6.6 | M 15 x 1 | 20 | 24 | 4 | M 6 | DIN 1810-A25-28 |
EG-GN350.1-0019 | 32 | 6.6 | M 20 x 1 | 24 | 29 | 5 | M 6 | DIN 1810-A30-32 |
EG-GN350.1-0020 | 32 | 9 | M 20 x 1 | 24 | 29 | 5 | M 8 | |
EG-GN350.1-0021 | 32 | 11 | M 20 x 1 | 24 | 29 | 5 | M 10 | |
EG-GN350.1-0022 | 45 | 11 | M 30 x 1.5 | 29 | 36 | 7 | M 10 | |
EG-GN350.1-0023 | 45 | 13.5 | M 30 x 1.5 | 29 | 36 | 7 | M 12 | DIN 1810-A45-50 |
EG-GN350.1-0024 | 45 | 17.5 | M 30 x 1.5 | 29 | 36 | 7 | M 16 | DIN 1810-A45-50 |
EG-GN350.1-0025 | 58 | 17.5 | M 40 x 1.5 | 37 | 46 | 9 | M 16 | DIN 1810-A58-62 |
EG-GN350.1-0026 | 58 | 22 | M 40 x 1.5 | 37 | 46 | 9 | M 20 | |
EG-GN350.1-0027 | 58 | 26 | M 40 x 1.5 | 37 | 46 | 9 | M 24 | |
EG-GN350.1-0028 | 70 | 22 | M 50 x 1.5 | 44 | 54 | 10 | M 20 | |
EG-GN350.1-0029 | 70 | 26 | M 50 x 1.5 | 44 | 54 | 10 | M 24 | |
EG-GN350.1-0030 | 70 | 33 | M 50 x 1.5 | 44 | 54 | 10 | M 30 | |
EG-GN350.1-0031 | 80 | 26 | M 60 x 2 | 49 | 61 | 12 | M 24 | |
EG-GN350.1-0032 | 80 | 33 | M 60 x 2 | 49 | 61 | 12 | M 30 | |
EG-GN350.1-0033 | 80 | 39 | M 60 x 2 | 49 | 61 | 12 | M 36 | |
GN 350.1-25-6.6-A-ST | 25 | 6.6 | M 15 x 1 | 15 | 19 | 4 | M 6 | |
GN 350.1-32-6.6-A-ST | 32 | 6.6 | M 20 x 1 | 18 | 23 | 5 | M 6 |
