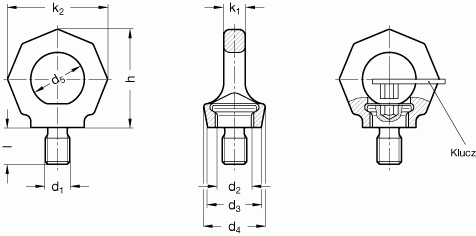

Śruby z uchem (obrotowe) GN 581
| Produkt | Główne wymiary | Obciążenie nominalne | Typ | ||||||||
| d1 | d2 | d3 | d4 | d5 | h | k1 | k2 | l | |||
 GN 581-M10-A | M10 | 16 | 25 | 30 | 25 | 46 | 9 | 47 | 15 | 0.4t (4 kN) | bez klucza |
GN 581-M10-B | M10 | 16 | 25 | 30 | 25 | 46 | 9 | 47 | 15 | 0.4 t (4 kN) | z kluczem |
GN 581-M12-A | M12 | 20 | 30 | 34 | 30 | 55 | 10 | 56 | 18 | 0.75 t (7.5 kN) | bez klucza |
GN 581-M12-B | M12 | 20 | 30 | 34 | 30 | 55 | 10 | 56 | 18 | 0.75 t (7.5 kN) | z kluczem |
GN 581-M16-A | M16 | 23.5 | 36 | 40 | 35 | 64 | 13 | 65 | 24 | 1.5 t (15 kN) | bez klucza |
GN 581-M16-B | M16 | 23.5 | 36 | 40 | 35 | 64 | 13 | 65 | 24 | 1.5 t (15 kN) | z kluczem |
GN 581-M20-A | M20 | 29 | 41 | 50 | 40 | 75 | 16 | 76 | 30 | 2.3 t (23 kN) | bez klucza |
GN 581-M20-B | M20 | 29 | 41 | 50 | 40 | 75 | 16 | 76 | 30 | 2.3 t (23 kN) | z kluczem |
GN 581-M24-A | M24 | 35 | 51 | 60 | 49 | 90 | 19 | 92 | 36 | 3.2 t (32 kN) | bez klucza |
GN 581-M24-B | M24 | 35 | 51 | 60 | 49 | 90 | 19 | 92 | 36 | 3.2 t (32 kN) | z kluczem |
GN 581-M30-A | M30 | 44 | 66 | 75 | 60 | 113 | 24 | 114 | 45 | 4.5 t (45 kN) | bez klucza |
GN 581-M30-B | M30 | 44 | 66 | 75 | 60 | 113 | 24 | 114 | 45 | 4.5 t (45 kN) | z kluczem |
GN 581-M36-A | M36 | 53 | 75 | 90 | 72 | 135 | 29 | 135 | 54 | 7.0 t (70 kN) | bez klucza |
GN 581-M36-B | M36 | 53 | 75 | 90 | 72 | 135 | 29 | 135 | 54 | 7.0 t (70 kN) | z kluczem |
GN 581-M6-A | M6 | 13 | 23 | 28 | 20 | 37 | 7 | 37 | 9 | 0.1 t (1.0 kN) | bez klucza |
GN 581-M8-A | M8 | 16 | 25 | 30 | 25 | 45 | 9 | 47 | 12 | 0.3 t (3 kN) | bez klucza |
GN 581-M8-B | M8 | 16 | 25 | 30 | 25 | 46 | 9 | 47 | 12 | 0.3 t (4 kN) | z kluczem |
