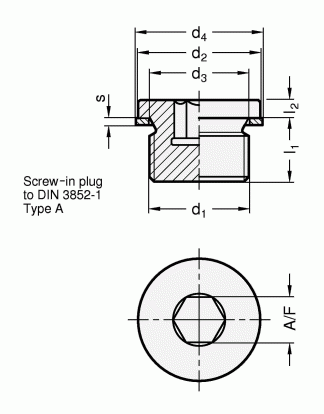

Korki gwintowane DIN 908
| Produkt | d%1% [mm] | d%2 h14% [mm] | d%3% [mm] | d%4% [mm] | l%1 ±0.2% [mm] | l%2 +0.5% [mm] | s [mm] | A/F [mm] |
 | G 1 1/2 | 55 | 48.1 | 55 | 16 | 5 | 2 | 24 |
 | G1 1/4 | 49 | 42.2 | 49 | 16 | 5 | 2 | 22 |
 | G1 | 39 | 33.5 | 39 | 16 | 5 | 2 | 17 |
 | G3/4 | 32 | 26.7 | 32 | 16 | 4 | 2 | 12 |
 | G1/2 | 26 | 21.3 | 26 | 14 | 4 | 1.5 | 10 |
 | G3/8 | 22 | 17 | 21 | 12 | 3 | 1.5 | 8 |
 | G1/4 | 18 | 13.4 | 18 | 12 | 3 | 1.5 | 6 |
 | G1/8 | 14 | 10 | 13.5 | 8 | 3 | 1 | 6 |
 | G 1 1/2 | 55 | 48.1 | 55 | 16 | 5 | 2 | 24 |
 | G 1 1/4 | 49 | 42.2 | 49 | 16 | 5 | 2 | 22 |
 | G1 | 39 | 33.5 | 39 | 16 | 5 | 2 | 17 |
 | G3/4 | 32 | 26.7 | 32 | 16 | 4 | 2 | 12 |
 | G1/2 | 26 | 21.3 | 26 | 14 | 4 | 1.5 | 10 |
 | G3/8 | 22 | 17 | 21 | 12 | 3 | 1.5 | 8 |
 | G1/4 | 18 | 13.4 | 18 | 12 | 3 | 1.5 | 6 |
 | G1/8 | 14 | 10 | 13.5 | 8 | 3 | 1 | 6 |
 | G1 1/2 | 55 | 48.1 | 55 | 16 | 5 | 2 | 24 |
 | G1 1/4 | 49 | 42.2 | 49 | 16 | 5 | 2 | 22 |
 | G1 | 39 | 33.5 | 39 | 16 | 5 | 2 | 17 |
 | G3/4 | 32 | 26.7 | 32 | 16 | 4 | 2 | 12 |
 | G1/2 | 26 | 21.3 | 26 | 14 | 4 | 1.5 | 10 |
 | G3/8 | 22 | 17 | 21 | 12 | 3 | 1.5 | 8 |
 | G1/4 | 18 | 13.4 | 18 | 12 | 3 | 1.5 | 6 |
 | G1/8 | 14 | 10 | 13.5 | 8 | 3 | 1 | 6 |
 | M48x2 | 55 | 48.3 | 55 | 16 | 5 | 2 | 24 |
 | M42x2 | 49 | 42.3 | 49 | 16 | 5 | 2 | 22 |
 | M33x2 | 39 | 33.3 | 39 | 16 | 5 | 2 | 17 |
 | M30x1.5 | 36 | 30.3 | 36 | 16 | 4 | 2 | 17 |
 | M27x2 | 32 | 27.3 | 32 | 16 | 4 | 2 | 12 |
 | M26x1.5 | 31 | 26.3 | 31 | 16 | 4 | 2 | 12 |
 | M24x1.5 | 29 | 24.3 | 29 | 14 | 4 | 2 | 12 |
 | M22x1.5 | 27 | 22.3 | 27 | 14 | 4 | 1.5 | 10 |
 | M20x1.5 | 25 | 20.3 | 24 | 14 | 4 | 1.5 | 10 |
 | M18x1.5 | 23 | 18.3 | 22 | 12 | 4 | 1.5 | 8 |
 | M16x1.5 | 21 | 16.3 | 20 | 12 | 3 | 1.5 | 8 |
 | M14x1.5 | 19 | 14.3 | 18 | 12 | 3 | 1.5 | 6 |
 | M12x1.5 | 17 | 12.3 | 16 | 12 | 3 | 1.5 | 6 |
 | M10x1 | 14 | 10.3 | 13.5 | 8 | 3 | 1 | 5 |
 | M8x1 | 12 | 8.3 | 11.5 | 8 | 3 | 1 | 4 |
 | M 48x2 | 55 | 48.1 | 55 | 16 | 5 | 2 | 24 |
